Plot Covariate-Diffusion Diagnostics on the Mesh — plot_diffused

Visualize fitted covariate-diffusion transforms or impulse-response kernels for one selected covariate-diffusion term. Values are plotted as colored mesh triangles, so no prediction grid is required.

Usage

plot_diffused_covariate(
  object,
  covariate = NULL,
  component,
  time_value = 1,
  n_steps = 1L,
  common_scale = TRUE,
  plot = TRUE
)

plot_diffusion_kernel(
  object,
  covariate = NULL,
  component,
  time_value = 1,
  n_steps = 3L,
  common_scale = FALSE,
  plot = TRUE
)

Arguments

object: A fitted sdmTMB() model with covariate_diffusion.
covariate: Optional covariate name from covariate_diffusion. Required when multiple lag covariates were fitted.
component: Covariate-diffusion component name. Must be one of "space", "time", or "combined". "combined" plots the joint response of all covariate-diffusion components fitted for covariate.
time_value: Optional time slice to plot or use for the impulse. Supply either a modeled time value or a 1-based time index. Defaults to 1.
n_steps: Number of transformed slices to plot starting at time_value.
common_scale: Should plotted panels share a common color scale? Defaults to TRUE for plot_diffused_covariate() and FALSE for plot_diffusion_kernel(). component = "time" alone likely needs common_scale = TRUE to make sense.
plot: Should the plot be printed? Defaults to TRUE.

Value

Invisibly returns a list with fields on vertices, triangle summaries used for plotting, selected indices, and a ggplot object.

Details

plot_diffused_covariate() visualizes the original mesh-vertex covariate field and its fitted covariate-diffusion transform of one selected covariate time slice over one or more lagged output time slices.

plot_diffusion_kernel() visualizes an impulse covariate diffusing through one covariate-diffusion component.

Examples


# Simulate some data for fitting:
set.seed(1)
n_t <- 6
n_sites <- 80
sites <- data.frame(X = runif(n_sites), Y = runif(n_sites))
dat <- data.frame(
  X = rep(sites$X, times = n_t),
  Y = rep(sites$Y, times = n_t),
  year = rep(seq_len(n_t), each = n_sites)
)
dat$x1 <- as.numeric(scale(
  sin(2 * pi * (dat$X + dat$year / 6)) +
    cos(2 * pi * (dat$Y - dat$year / 8)) +
    0.4 * sin(4 * pi * dat$X) * cos(dat$year / 2) +
    rnorm(nrow(dat), sd = 0.15)
))
mesh <- make_mesh(dat, xy_cols = c("X", "Y"), cutoff = 0.12)
sim <- simulate_new(
  formula = ~ 1,
  data = dat,
  mesh = mesh,
  time = "year",
  family = gaussian(),
  spatial = "off",
  spatiotemporal = "off",
  range = 0.3,
  sigma_O = 0,
  sigma_E = 0,
  phi = 0.1,
  B = c(0, 0.7, 0.6),
  covariate_diffusion = ~ space(x1) + time(x1),
  diffusion_kappaS = 4.4,
  diffusion_rhoT = 0.3,
  seed = 123
)
dat$observed <- sim$observed

# Fit the model:
fit <- sdmTMB(
  observed ~ 1,
  data = dat,
  mesh = mesh,
  time = "year",
  spatial = "off", # keeping example simple
  spatiotemporal = "off", # keeping example simple
  family = gaussian(),
  covariate_diffusion = ~ space(x1) + time(x1) #<
)

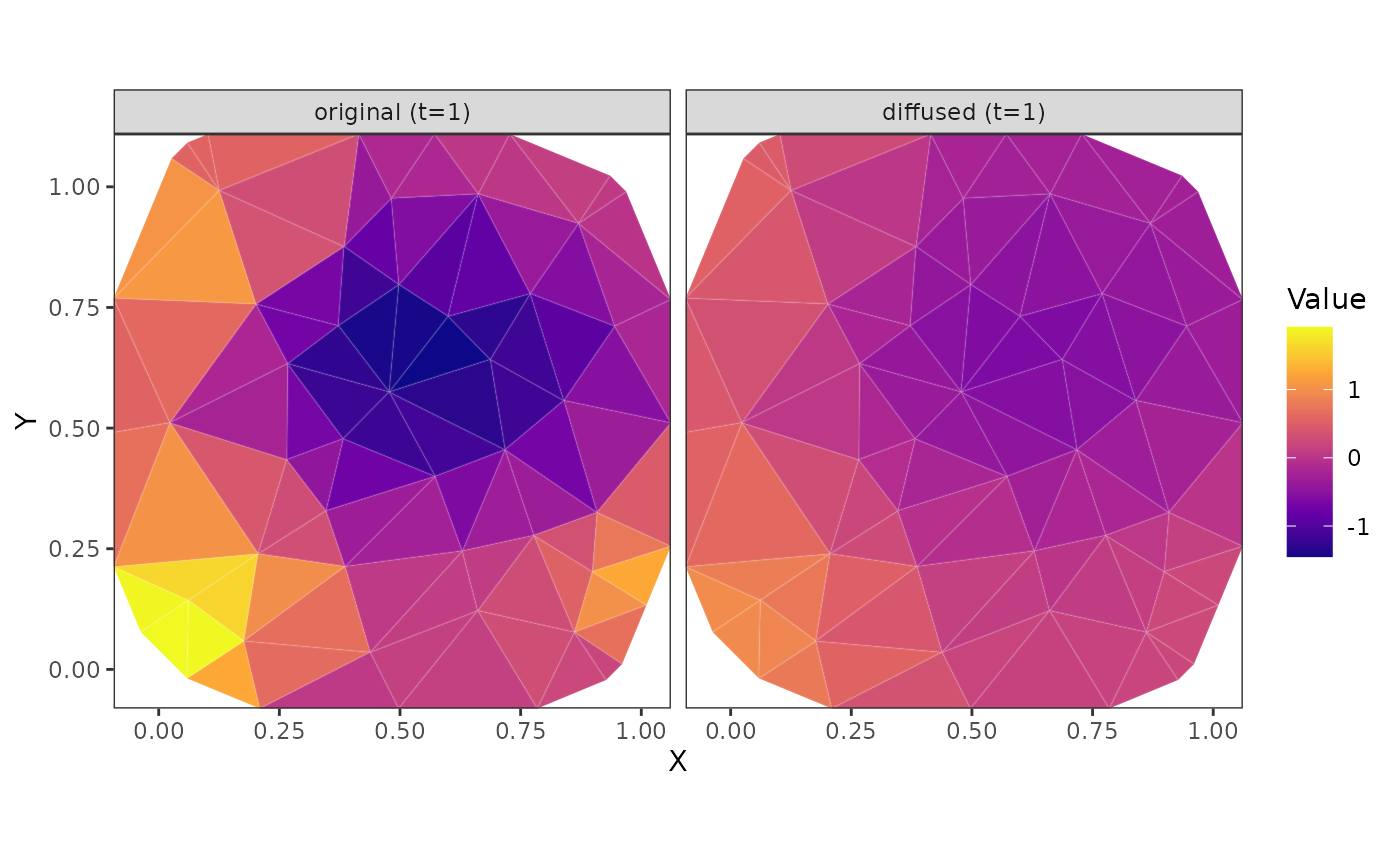

plot_diffused_covariate(
  fit,
  covariate = "x1",
  component = "space"
)

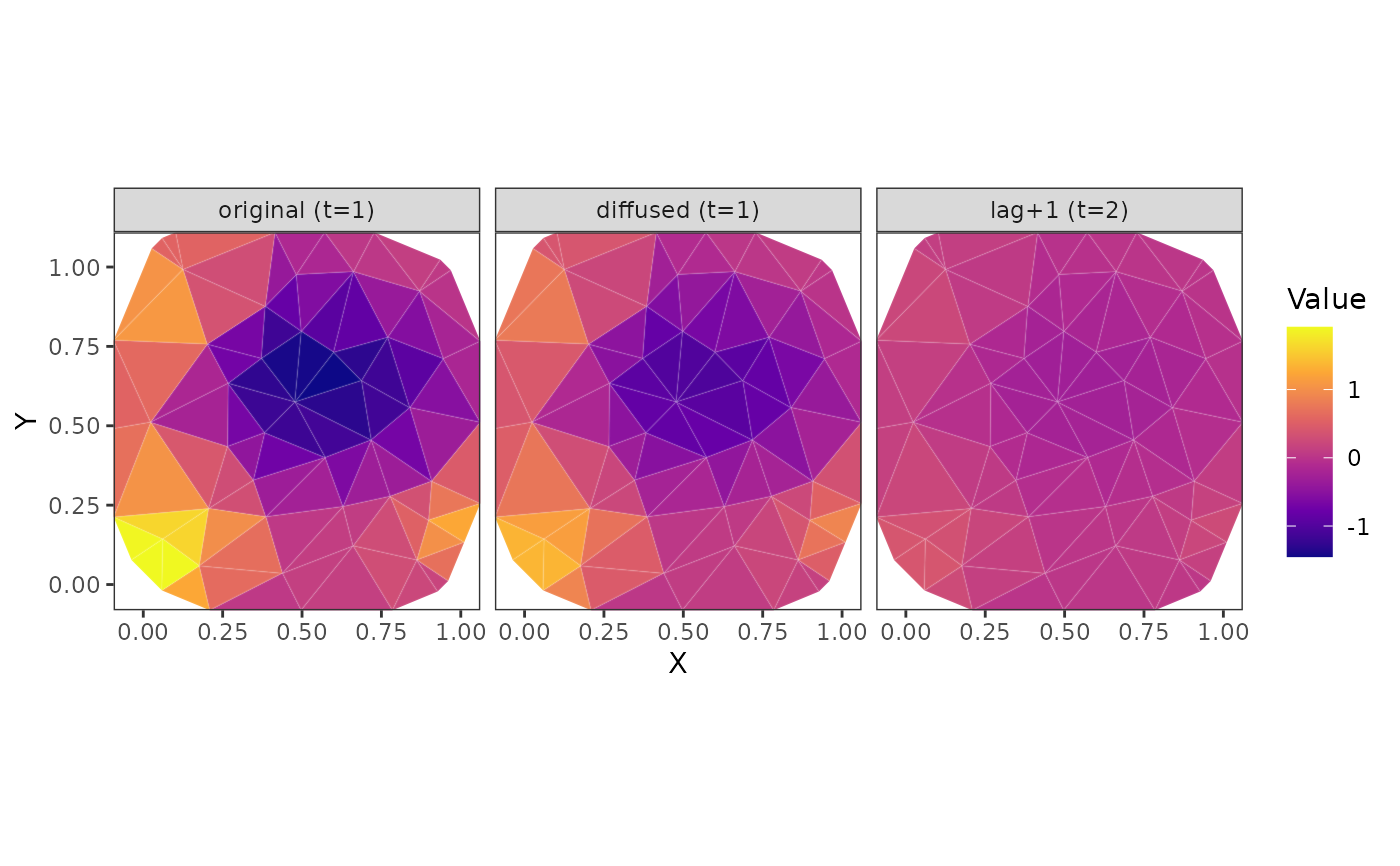

plot_diffused_covariate(
  fit,
  covariate = "x1",
  component = "time",
  time_value = 1,
  n_steps = 2
)

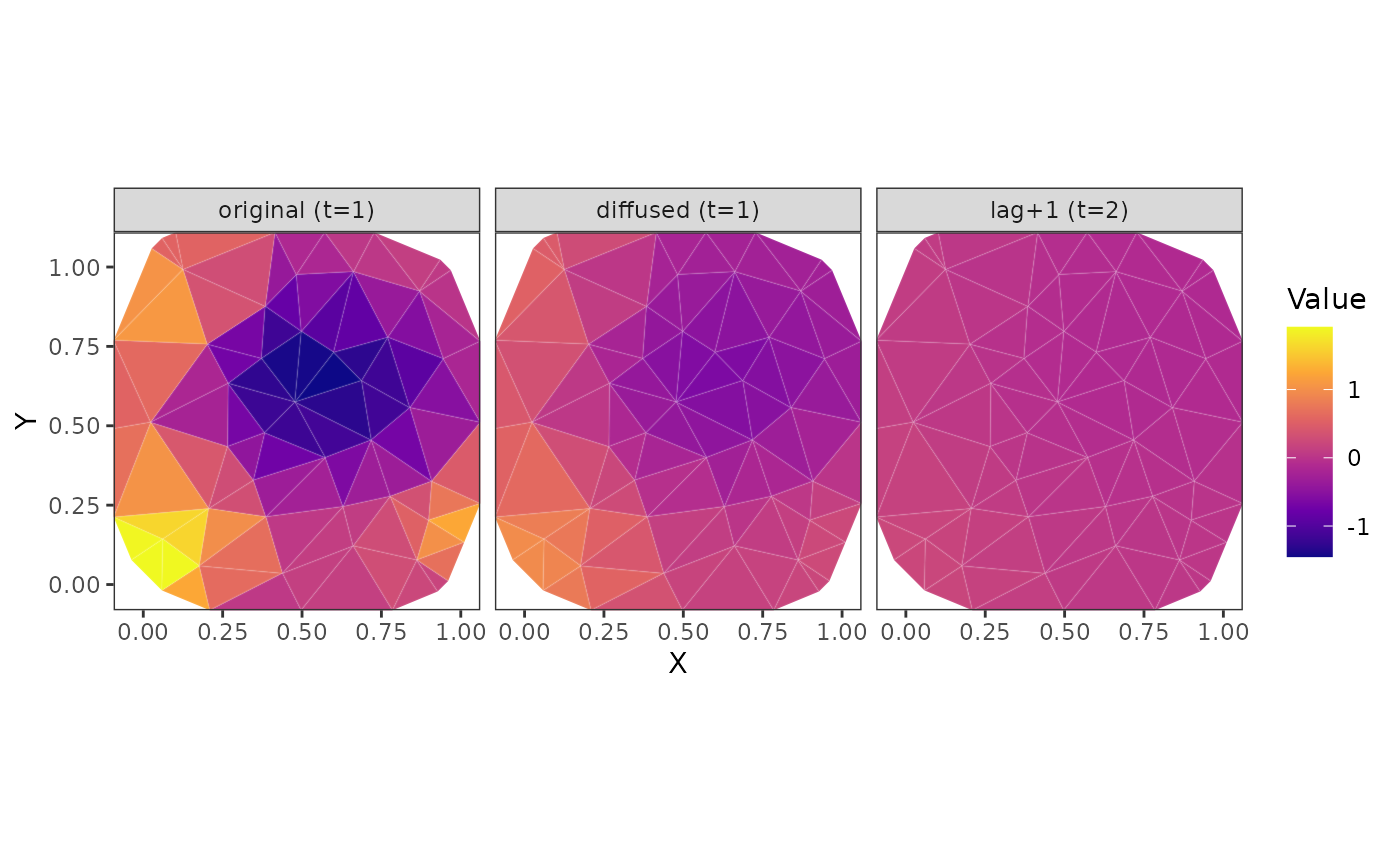

plot_diffused_covariate(
  fit,
  covariate = "x1",
  component = "combined",
  time_value = 1,
  n_steps = 2
)

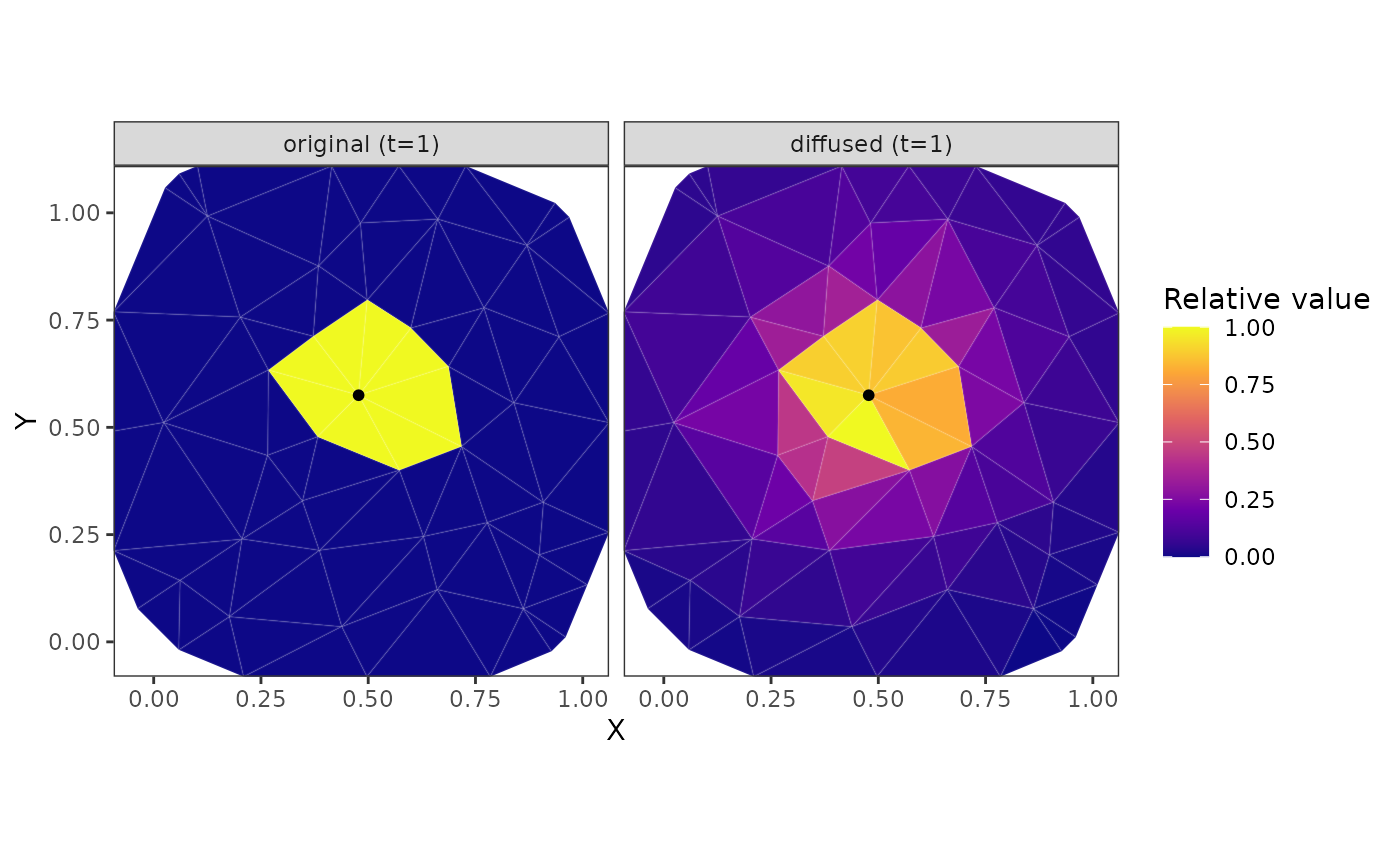

plot_diffusion_kernel(
  fit,
  covariate = "x1",
  component = "space"
)

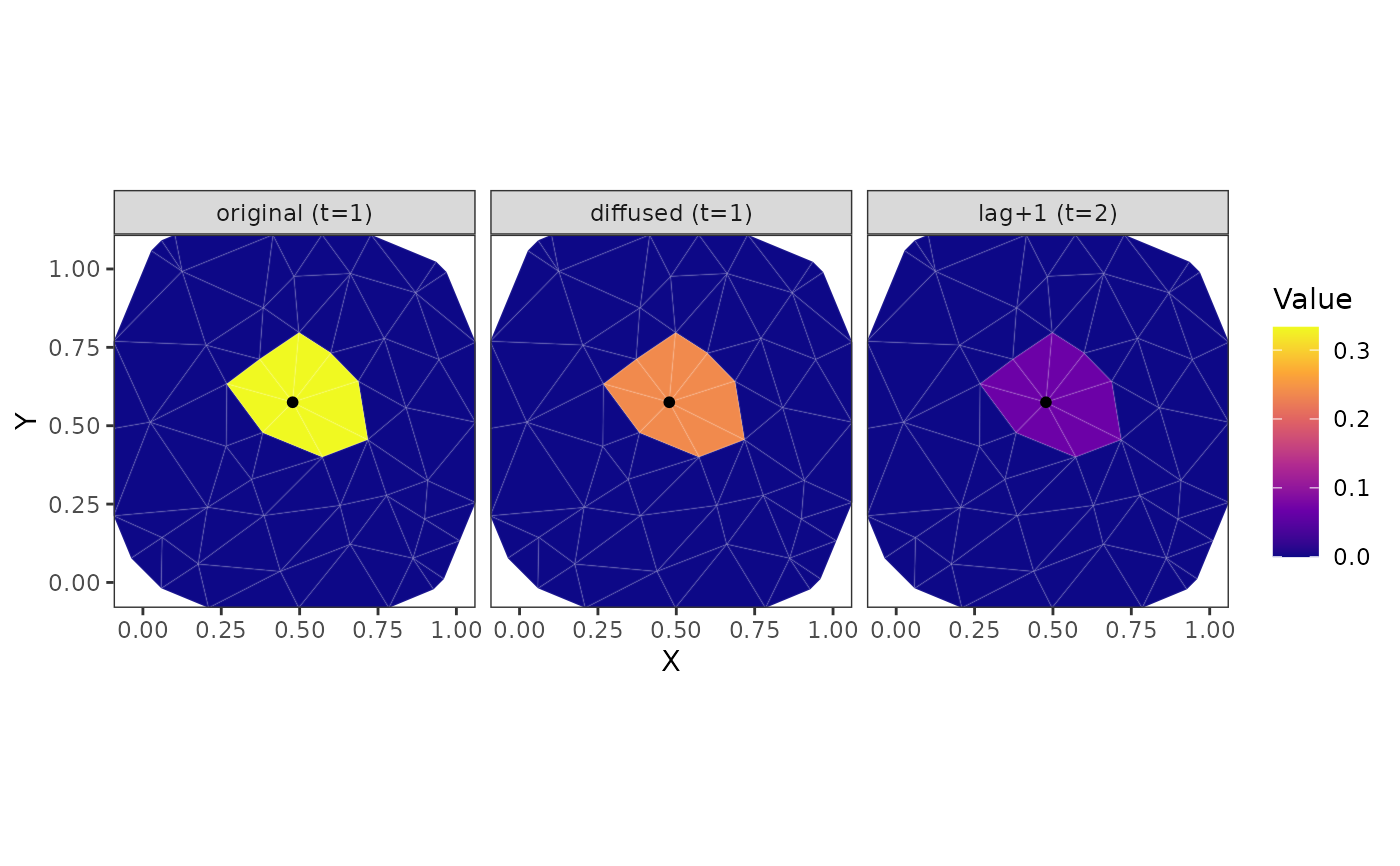

plot_diffusion_kernel(
  fit,
  covariate = "x1",
  component = "time",
  time_value = 1,
  n_steps = 2,
  common_scale = TRUE #<
)

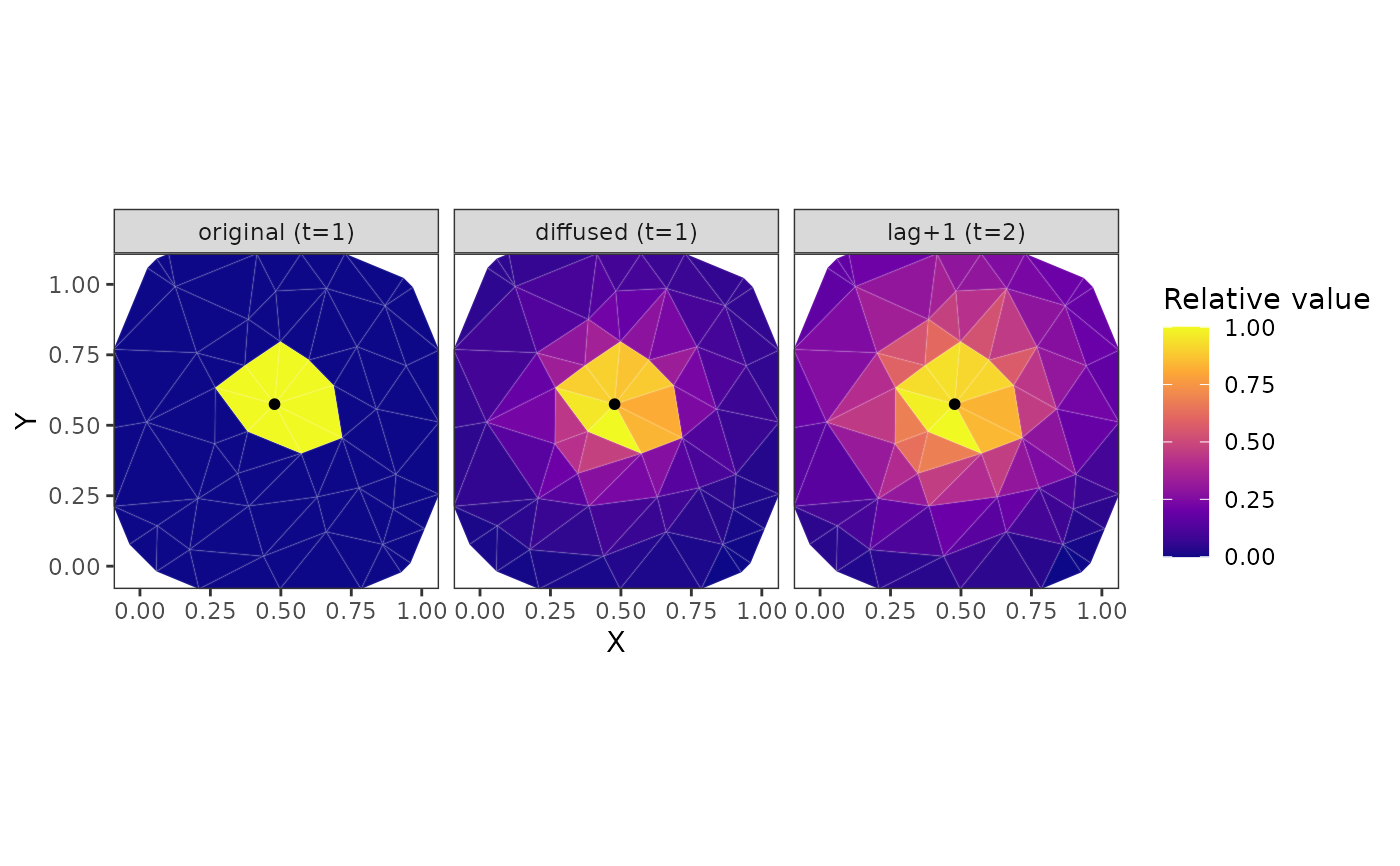

plot_diffusion_kernel(
  fit,
  covariate = "x1",
  component = "combined",
  time_value = 1,
  n_steps = 2
)
